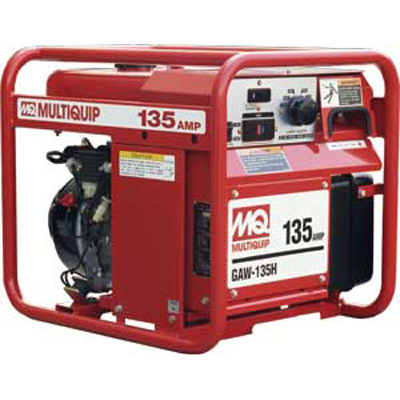

MULTIQUIP GAW135HNC 135 AMPS HONDA 49 STATE ENGINE WELDER

Manufacturer: MULTIQUIP
Model: GAW135HNC
4 Hour: $107
Daily: $107
QGAW135H 135 Amps DC, 1.5 KW/120V AC, Honda GX200 - Coming in at only 114 pounds, Multiquip's 135-amp welder is the number one choice for those hard to reach areas with its maintenance free permanent magnet generator design. This unit maintains the quality output contractors demand and have come to expect.

FEATURES
  • 135 amps of DC welding power, 1.5kW AC output
  • Dry weight of only 114 pounds (52 kg)
  • Honda GX200 gasoline engine
  • Up to 45% lighter than other welders in its class
  • Can be mounted to service trucks or on high reach baskets
  • Ideal for a wide variety of utility welding applications
  • DC Voltage CC: 25.2 V
  • DC Current CC: 135 A
  • Current Range: 40-135 A
  • Max Duty Cycle w/ Full Amps Available: 40% @135 A
  • Welding Processes: SMAW | FCAW
  • Fuel Tank Capacity: 1.6 gal
  • Fuel Consumption at Rated Load: 0.46 gph
  • AC Power Output (Single Phase): 1.5 kW
  • Cycle: 60 Hz
  • Voltage: 120 V
  • Amperage: 12.5 A
  • Voltage Regulation: 3 %
  • Receptacles: NEMA 5-20R 125V GFCI 20A
  • Overall Length: 21.75 in
  • Overall  Width: 17.75 in
  • Overall Height: 19 in
  • Shipping Dimensions: 22.5 x 19 x 20.5 in
  • Operating Weight: 123 lb
  • Shipping Weight: 114 lb
  • Engine Make/Model: Honda GX-200
  • Start Method: Recoil
  • Engine Power: 5.5 HP
  • Engine RPM: 3600
  • Fuel Type: Gasoline
PDF Version Multiquip GAW135HNC Specifications
PDF Version Multiquip GAW135HNC Operators Manual
