GENERATOR 25KVA 20KW TRAILER MOUNT

Manufacturer: WACKER NEUSON
Model: G25
4 Hour: $250
Daily: $250

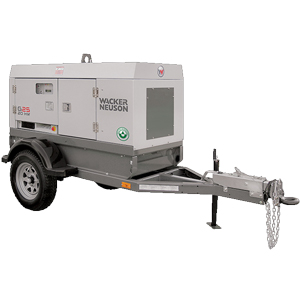

Wacker G25 Mobile Generator
Wacker G25 Mobile Generator
The G25 mobile generator offers contractors and rental houses an excellent power solution. The compact, sound-attenuated model provides single and three-phase power for construction, commercial, industrial and special event applications where quiet, reliable power is needed. A digital controller monitors and protects the generator and engine while providing continuous operating data on an easy-to-read LCD display. Large capacity fuel tank for long run times and durable features for long life.

FEATURES
  • Ideally suited for construction sites where durability, reliability, and flexibility are required to supply continuous power for applications such as lighting, cranes, concrete mixers, and conveyor belts.
  • Brushless, oversized alternators with separate excitation winding and AVR (Automatic Voltage Regulation) provide superior motor starting and enhanced ability to run non-linear loads.
  • Single switch start and simple, uncluttered control panel provide unmatched ease of use.
  • Automatic remote start capability standard which is ideal for temporary standby applications.
  • Factory-installed customized options are available. These include, but are not limited to, a fluid containment system, cold weather options, a camlock panel, etc. Also available are optional trailers that are fully equipped and highway ready.
* Prices are subject to change. Tax and other fees not shown in above price estimate.
  • L x W x H Operating (Skid): 76.6 x 35 x 44.5in
  • Weight Dry (Skid): 1,911lb
  • Weight Operating (Skid): 2,332lb
  • Weight Operating (Trailer): 2,802lb
  • Engine / Motor: Liquid-Cooled, 4 Cylinders
  • Engine / Motor manufacturer: Isuzu
  • Emissions Certified: Tier 4i
  • Displacement in³: 133
  • Operating performance SAE J1995, ISO 8528-1 hp: 35.4
  • at rpm: 1,800
  • Coolant Capacity US qt :11.9
  • Engine oil Capacity US qt: 8.5
  • Fuel type: Diesel
  • Fuel consumption (Prime Load) US gal/h: 1.8
  • Tank capacity -Fuel US gal: 58.4
  • Quantity (Battery): 1
  • Battery V: 12
  • Generator model: Mecc Alte, Brushless w/AVR
  • Voltage control No Load to Full Load +/- %: 1
  • Voltage control Steady State +/- %: 0.2
  • Generator insulation (class): H
  • Frequency (Generator Speed) Hz: 60
  • Runtime at 100% Prime Load h: 32.2
  • Runtime at 75% Prime Load h: 24.15
