MANITOU MTA 6034 S3 CONSTRUCITON TELEHANLER
| Manufacturer: | MANITOU |
| Model: | MTA6034 |
| 4 Hour: | $550 |
| Daily: | $550 |

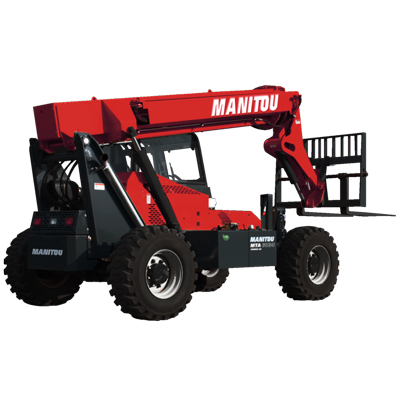

Manitou MTA 6034 S3 Construction Telehandler - The MTA 6034 construction telehandler is reliable and robust, equipped with a welded box-section boom. This machine is capable of transporting, lifting, placing and removing loads up to 10.4 m in height. And with a maximum load capacity of 2.7 t, this telehandler gives you a quick and excellent return on your investment. Clear up sites more easily and more safely with the MTA 6034 thanks to its Deutz TD 3.6 Tier IV engine and Powershift gearbox. Load and unload lorries, place and remove loads at greater heights, use the various attachments available to handle structures, concrete, materials... there's nothing this telehandler can't do.
- Max. capacity: 5999 lb
- Max. lifting height: 34 ft 3 in
- Max. outreach: 23 ft 3 in
- Overall length to carriage: 16 ft
- Overall width: 7 ft 10 in
- Overall height: 7 ft 9 in
- Wheelbase: 9 ft 2 in
- Ground clearance: 14 in
- Overall cab width: 30 in
- Tilt-up angle: 12 °
- Tilt-down angle: 106 °
- External turning radius: 12 ft 6 in
- Unladen weight (with forks): 15113 lb
- Standard tires: 15 x 19.5
- Frame leveling longitudinal +/-: 10 °
- Frame leveling corrector: 10 °
- Engine brand: Deutz
- Engine norm: Stage IV / Tier 4 Final
- Engine model: TD3.6 L4
- Number of cylinders / Capacity of cylinders: 4 - 0.22 in³
- I.C. Engine power rating - Power: 74.29 Hp / 55.40 kW
- Max. torque / Engine rotation: 243 ft/lbs @ 330 rpm
- Transmission type: Torque converter with powershift gearbox
- Number of gears (forward / reverse): 3 / 3
- Travel speed (laden): 18 mph
- Parking brake: Hydraulic spring release SAHR
- Service brake: Wet disc brakes
- Axle Manufacturer: Dana
