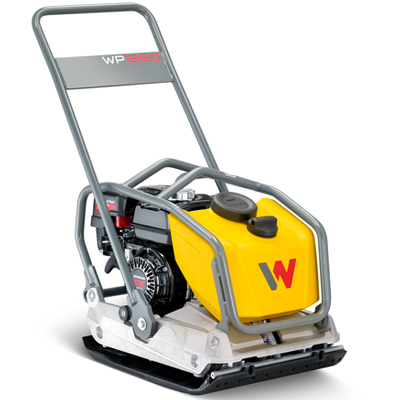

WP1550AW Single-direction vibratory plate

WACKER WP1550AW VIBRATORY PLATE

$2,299.00

CLICK HERE FOR FINANCING
PRODUCT ENQUIRY
Category:
Wacker Neuson Vibroplate WP1550AW 5100062424 - The Wacker Neuson WP1550AW is a powerful, single-direction vibratory plate with water tank for soil compaction that can handle large areas quickly. Featuring a reliable Honda engine, 3372 pounds of centrifugal force, a width of 19.7", and an operating weight of 216.1 pounds, this tool is perfect for any job site.

FEATURES
  • Flawless asphalt compaction: The beveled edges of the base plate minimize the formation of stressed edges when turning the vibratory plate
  • The control handle allows for effortless rotating and turning
  • Sturdy design for minimum maintenance effort: The V-belt drive with all-round protection ensures a particularly long service life of the V-belt. The base plate is manufactured from wear-resistant nodular cast iron
  • A sturdy pipe frame reliably protects the engine and water tank
  • Suspension points in the protective frame allow for safe transport. The front-folding guide handle converts the unit into a compact unit in no time
  • Optional paving stone sliding mechanism, wheel set as well as water tank with sprinkling set available here in the shop
  • Tank capacity: 1,0 gal US
  • Fuel management: Carburettor
  • Inclined position max.: 20,0
  • Engine operating mode: four-stroke
  • Operating Engine speed: 3.520 1/min
  • Fuel consumption: 0,2 GPH US
  • Standard (Power max.): SAE J1349
  • Standard (Effective power): ISO 3046 IFN
  • Nominal Engine speed: 3.600 1/min
  • Electrode distance: 0,028 - 0,032 "
  • Oil filling max.: 0,2 gal US
  • Effective power: 4,2 hp, 4,8 hp
  • Battery capacity (nom. value): 0 Ah
  • Air cleaner: Cyclone air filter
  • Power rating max.: 4,8 hp
  • Cooling: air cooling
  • Exhaust-gas limit: EPA4/08
  • Oil specification: SAE 10W-30
  • Starter battery Voltage: 0 V
  • Engine speed (Power max.): 3.600 1/min
  • Starter type: Recoil starter
  • Operating power: 3,9 hp
  • Oil filling min.: 0,2 gal US
  • Engine type: Gasoline engine
  • Cylinder: 11
  • Engine Manufacturer: Honda
  • Standard (Operating power): ISO 3046 IFN
  • Cylinder capacity: 9,9 Inch
  • Spark plug(s): NGK BP-6 ES
  • Kraftstofftyp: Gasoline
  • Oil volume incl. filter change: 0,2 gal US
  • Vibrations: 5.880 1/min
  • Forward running: 1,6 fps
  • Transmission: FKK-KR
  • Gradeability: 36,4 %
  • Centrifugal force: 3.372 lbf
  • Vibrations (Hz): 98,0 Hz
  • Area capacity: 9.364,7 ft2/h
  • Operating temperature range: 5 - 104 °F
  • Sound level LpA (Standard): EN 500-4
  • HAV summation (Standard): EN 500-4
  • Sound level LpA: 93,0 dB(A)
  • Sound power LWA (Standard): EN 500-4
  • Sound power LWA, measured: 107,0 dB(A)
  • Lenght Drawbar in op. pos.: 34,1 "
  • Operating weight: 198,4 lb
  • Ground clearance: 21,7 "
  • Height: 37,9 "
  • Width: 19,7 "
PDF Version Wacker WP1550AW Specifications
PDF Version Wacker WP1550AW Operators Manual
PDF Version Wacker WP1550AW Service Manual
