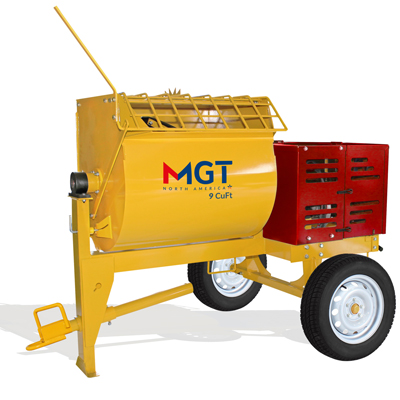

MENEGOTTI MORTAR MIXER 9 CU.FT. WITH HONDA GX240 ENGINE

$3,700.00

Category:
Menegotti Mortar Mixer 9 Cu. Ft. Honda 7.9HP GX240 Steel Drum | Model: MEN| Serial:# M09638 - Developed with robust structure and components which provide greater yield and homogenization for mixing mortar. Provide a fine and more homogeneous mixture, greater mortar fluidity due to a horizontal rotating mixture with 4 blades. Unique lever system with two stages to tilt, providing better ergonomics for the worker.

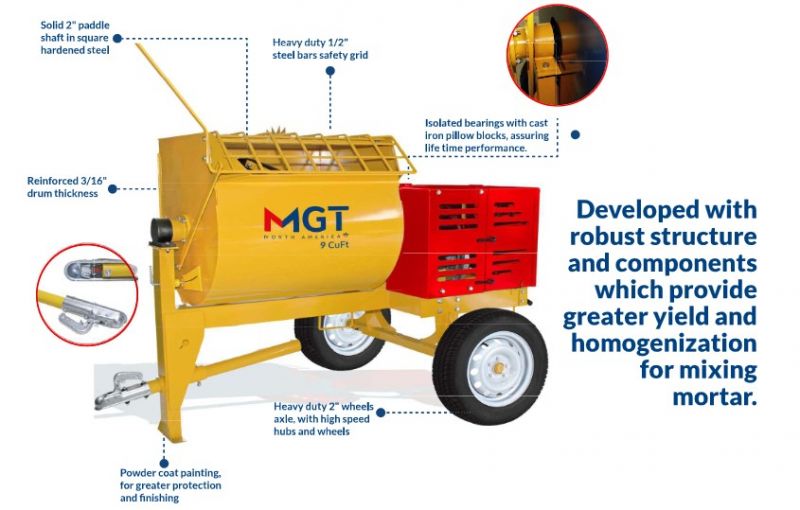

FEATURES
  • Reinforced 3/16” drum thickness
  • Solid 2” paddle shaft in square hardened steel
  • Heavy duty 1/2” steel bars safety grid
  • Isolated bearings with cast iron pillow blocks, assuring lifetime performance.
  • Powder coat painting, for greater protection and finishing
  • Heavy duty 2” wheels axle, with high-speed hubs and wheels
mortar mixer
  • Model: 9 Cu Ft
  • Total Volume: 9 Cu Ft (250 liters)
  • Drum Capacity: 9 Cu Ft (250) | 2½ - 3½ Bags
  • Weight without the Engine: 790 Lbs
  • Sizes | Position of the Mixture (L x W x H): 76 x 52 x 66 inches
  • Drum Thickness: 4g 3/16”
  • Box for the engine: Electric or Combustion
  • Wheels Pneumatic Rim: 13”
  • Towing: Tow bar for Transport and Towing
PDF Version Menegotti MM9 Operators Manual
